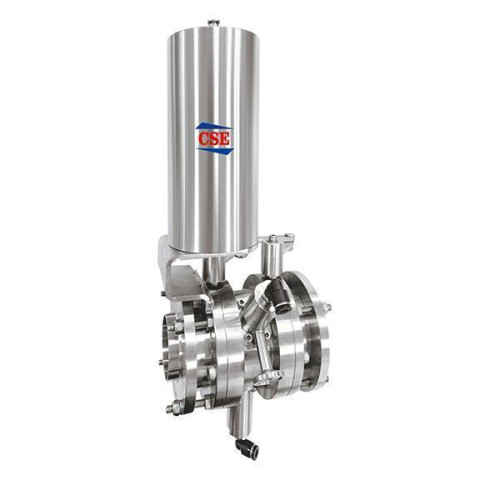

Product ID: P38_Mix-Proof Butterfly Valve Series

The anti-mix butterfly valve use in food and beverage line for avoiding the Gasket leakage for cause mix difference liquid.Also can use in CIP cleaning system to avoid acid and alkali liquids mix with normal liquid.Manual & Pneumatic handle control with 2 anti-mix piston easily maintain and economic Mix Valve design than Double Mix piston valve design.

Product specifications:

Size:

1 ~ 4" Mix-proof butterfly valve

Material quality:

304

316L

Temperature:

0~130°c (varies according to oil seal material)

Maximum pressure:

10kg/2

Export type:

Clip-on

Welding

Oil-free

Control type:

manual handle

steam operated

can be matched with control box

Washer material:

EPDM

SILICON

VITON

Product specification:

3A

DIN

SMS

IDF

RJT...

Product Features:

Effectively separate different media in CIP or storage tank system

Leak indication can be given to the leaking seal

Design leak chamber for flushing connection

Forced mechanical drive between the leakage valve and the valve plate
